Raisin Network

Introduction

Raisin Network is a package for transferring messages. Messages can be exchanged between different machines, different processes, or even different objects within the same process.

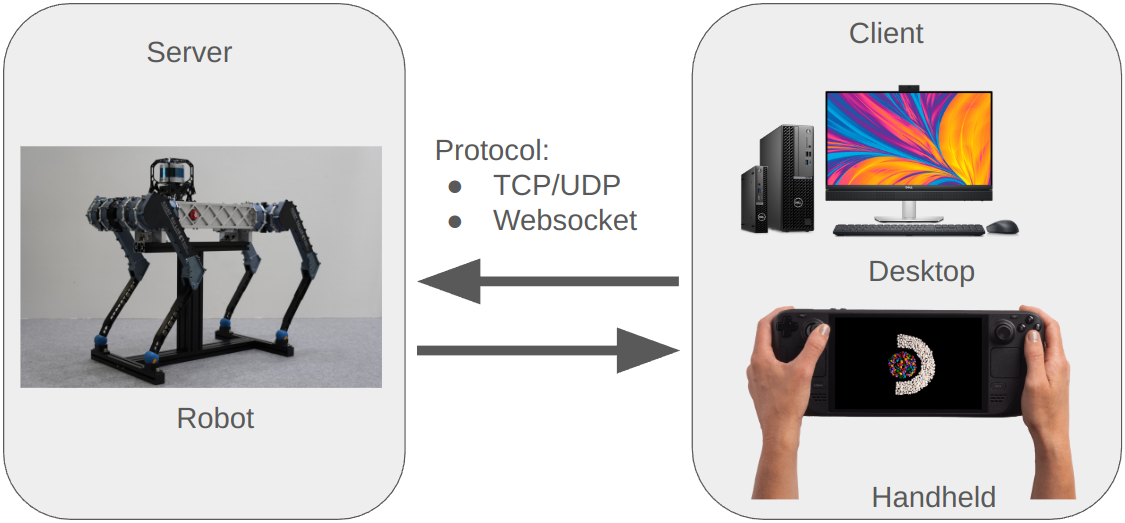

Raisin Network supports both local network connections (TCP/UDP) and remote network connections (WebSocket++). If a robot has a cellular network (LTE or 5G) with a static IP, you can connect to the robot using Raisin Network.

The Raisin Network API is highly inspired by ROS2. If you are familiar with ROS2, you will find Raisin Network intuitive, requiring minimal additional learning.

Raisin Network supports both compression and encryption. For instance, video data is compressed using FFmpeg.

Threadpool

To understand Raisin Network, it is essential to first understand Raisin Threadpool.

Raisin Threadpool preallocates threads and allows users to register tasks. If multiple tasks are registered within the same thread, they will not be executed concurrently. This minimizes the need for mutexes, reducing unnecessary wait times. Additionally, since mutexes are often overlooked, using a thread pool is a safer alternative to individually created std::thread objects.

Registered tasks fall into two categories: periodic and event-based. Periodic tasks run at a fixed frequency, while event-based tasks execute only when triggered. Raisin Network manages message handling through Raisin Threadpool. Further details are provided in the following sections.

When creating an instance of raisin::Network, you can specify the thread group configuration of a type std::vector<std::vector<std::string>>. The outer vector represents thread pools, each containing multiple thread groups. When creating a task, you can assign it to a specific thread group, ensuring execution within the corresponding thread pool.

Remotes and Connections

A key difference between ROS2 and Raisin Network is that Raisin Network requires an explicit connection to communicate. This is very different from ROS2 which broadcasts messages to all machines within the same local network.

A server can be started in any raisin::Network instance using the launchServer() method. By default, this creates a TCP server, but a webSocket server can also be launched by specifying the type as launchServer(Remote::NetworkType::WEBSOCKET). Both TCP and WebSocket servers can be initiated from the same raisin::Network instance. In fact, we recommend maintaining a single instance of raisin::Network per process.

Once the server is created, it can be discovered from another raisin::Network instance using the getAllConnections() method. To connect to a TCP server, use connect(const std::string & id). To connect to a WebSocket server, use connect(const std::string & ip, int port).

Note: The port number for the WebSocket server is currently fixed at 9002.

Publisher and Subscriber

Publishers are designed to deliver messages at a consistent rate. Thus they typically operate in a timed loop, implemented as a periodic task in the thread pool. However, to publish messages periodically, you must explicitly create a timed loop. Check out the example code in the below example.

Within a single Raisin Network instance, publishers must have unique names.

Subscribers listen to designated publishers and execute a callback whenever a message is received. This process is managed through an automatically created event task. When a message arrives from the publisher, the event task associated with the subscriber is triggered, and the corresponding callback is executed.

Message types are specified in .msg files. Since Raisin Network strictly adheres to ROS2 conventions, we recommend referring to the ROS2 documentation for details (https://design.ros2.org/articles/legacy_interface_definition.html).

.msg files in a Raisin package are converted into header files located at <raisin_package_name>/msg/<msg_file_name>.hpp. The header file names follow the snake_case convention, consistent with ROS2 standards.

The example code is available in https://github.com/railabatkaist/raisin_examples.git.

Write the Publihser node

The following is a basic example of publisher

//
// Created by munjuhyeok on 25. 7. 29.
//
// raisin inclusion
#include "raisin_network/node.hpp"
#include "raisin_network/raisin.hpp"

// message inclusion
#include "std_msgs/msg/string.hpp"

// std inclusion
#include <string>

using namespace raisin;


class EmptyPub : public Node{
public:
  EmptyPub(std::shared_ptr<Network> network) :
          Node(network){

    // create publisher
    stringPublisher_ = createPublisher<std_msgs::msg::String>("string_message");
    createTimedLoop("string_message", [this](){
      std_msgs::msg::String msg;
      msg.data = "raisin publisher!";
      stringPublisher_->publish(msg);
    }, 1., "pub");
  };
  ~EmptyPub() {
    /// YOU MUST CALL THIS METHOD IN ALL NODES
    cleanupResources();
  }
private:
  Publisher<std_msgs::msg::String>::SharedPtr stringPublisher_;
};


int main() {
  raisinInit();
  std::vector<std::vector<std::string>> thread_spec = {{std::string("pub")}};
  auto network = std::make_shared<Network>("publisher", "tutorial", thread_spec);
  network->launchServer(Remote::NetworkType::TCP);

  EmptyPub ps(network);

  std::this_thread::sleep_for(std::chrono::seconds(20));
  return 0;
}

node.hpp and raisin.hpp include the core components required for the network and communication nodes. To enable communication, the data type being transmitted must be consistent. In this example, a string type is used. Additionally, the standard library is included to use std::string

These lines represent the node’s dependencies. Recall that dependencies have to be added to CMakeLists.txt, which you’ll do in the next section.

The next line creates the node class by inheriting from Node. Every this in the code is referring to the node.

The EmptyPub class takes a Network object as a member variable. As you know, it inherits from the Node class. Once the node is constructed with a name, a parameter container, and the network, it gains access to internal methods like createPublisher and createTimedLoop. These methods are responsible for creating a publisher and executing periodic loop operations, respectively.

The createPublisher function communicates using the String type and is named “string_message”, allowing it to communicate with any subscriber that uses the same type and topic name. In addition, a periodic loop is created using createTimedLoop. Although it’s implemented using a lambda function, how the callback is handled is left to the developer’s discretion.

The parameters of createTimedLoop are as follows: the taskName sets the name of the loop, a callback function defines the operation to be executed, the frequency is specified in hertz, and a thread group can be assigned.

This thread group refers to a group within the thread pool. Each group maintains an independent queue, which helps minimize race conditions and reduces latency through workload separation.

To use it, simply specify the thread that the communication node should occupy. If that thread exists in the thread pool, it will be assigned accordingly.

Nodes must call the cleanup method upon destruction to properly release allocated resources. Failing to do so may lead to segmentation faults. This method ensures that all tasks registered with the thread pool are correctly deregistered before the node’s internal resources are deallocated.

stringPublisher_ is declared according to the appropriate message type.

first, raisinInit is should be done at the start of the main function. thread_spec contains the list of worker threads. Currently, it includes only one for the publisher, but more workers can be added as needed. The Network class takes an ID, device type, and worker list as arguments. Once instantiated, the Network object connects to external networks via TCP using the launchServer method. Upon creation, it begins executing its loop and starts publishing messages.

Service and Clients

Services facilitate infrequent communication between nodes. A client sends a Request to a service, which executes a callback and responds with a Response. Services are automatically registered as event tasks. Like publishers, services must have unique names within a raisin::Network instance.

Clients can optionally include a callback function. If not, they should use the std::shared_future returned by the service. Properly managing services can be complex, so we recommend referring to the example code below.

The example code is available in https://github.com/railabatkaist/raisin_examples.git.

Write the Client node

// raisin inclusion
#include "raisin_network/node.hpp"
#include "raisin_network/raisin.hpp"

// message inclusion
#include "raisin_interfaces/srv/string.hpp"

using namespace std::chrono_literals;
using namespace raisin;

class EmptyClient : public Node{
public:
  EmptyClient(std::shared_ptr<Network> network, std::shared_ptr<Remote::Connection> connection) :
          Node(network) {

    // create Service
    stringClient_ = createClient<raisin_interfaces::srv::String>("string_service", connection, "client");
    createTimedLoop("request_repeat", [this](){
                      if (stringClient_ && stringClient_->isServiceAvailable()) {
                        if (!future_.valid()) {
                          auto req = std::make_shared<raisin_interfaces::srv::String::Request>();
                          req->data = "request";
                          future_ = stringClient_->asyncSendRequest(req);
                          std::cout << "sent request " << std::endl;
                        }

                        if (future_.valid() && future_.wait_for(0s) == std::future_status::ready) {
                          auto response = future_.get();
                          future_ = {};
                          std::cout << "message " << response->message << std::endl;
                        }
                      }
                    }
            , 1.);
  };
  ~EmptyClient() {
    /// YOU MUST CALL THIS METHOD IN ALL NODES
    cleanupResources();
  }

  void responseCallback(raisin_interfaces::srv::String::Response::SharedPtr response) {
    std::cout<<"response: "<<response->message<<std::endl;
  }
private:
  Client<raisin_interfaces::srv::String>::SharedPtr stringClient_;
  Client<raisin_interfaces::srv::String>::SharedFuture future_;

};


int main() {
  raisinInit();
  std::vector<std::vector<std::string>> thread_spec = {{std::string("client")}};
  auto network = std::make_shared<Network>("client", "tutorial", thread_spec);
  std::this_thread::sleep_for(std::chrono::seconds(2));

  auto con = network->connect("service");

  EmptyClient ec(network, con);

  std::this_thread::sleep_for(std::chrono::seconds(20));

  return 0;
}

This follows the same structure as previous examples. It inherits from Node and communicates by matching both the message type and service name, which is a common pattern. This design allows each robot node to easily exchange data with either local or external networks.

What makes this code different is the use of asyncSendRequest, which enables asynchronous data transmission from the client to the service. Another difference is the use of a future. A future is a one-time shared object used for thread communication. It waits for a response from the service and returns the result once it becomes available.

Raisin CLI

██████╗   █████╗ ██╗███████╗██╗███╗   ██╗
██╔══██╗ ██╔══██╗██║██╔════╝██║████╗  ██║
███████═╗███████║██║███████╗██║██╔██╗ ██║
██╔═══██║██╔══██║██║╚════██║██║██║╚██╗██║
██║   ██║██║  ██║██║███████║██║██║ ╚████║
╚═╝   ╚═╝╚═╝  ╚═╝╚═╝╚══════╝╚═╝╚═╝  ╚═══╝
[Raisin Util] install directory is /home/raion/raisin_master/install/
[2025:07:23:10:17:17 network.cpp:194] Ip of this machine is
[2025:07:23:10:17:17 network.cpp:295] Encryption test passed
[2025:07:23:10:17:17 network.cpp:274] Raisin network is encrypted with empty
[2025:07:23:10:17:17 network.cpp:792] Received packet on unknown interface index: 0
╔═════════════════════════════ Command ═══════════════════════════╗
║ Connect: con [server_id] ║ List connections: list  ║ Quit: quit ║
╚═════════════════════════════════════════════════════════════════╝

The CLI tool provides a simple way to interact with available servers, monitor messages, and send service requests. Below is a guide to its main features and usage.

Custom msg and srv files

raisin_master workpsace looks like this

raisin_master/
├── include/
├── install/
├── src/
├── templates/
├── message/
├   └── custom_msg/
├       └── msg/
├          └── msg.msg
├       └── srv/
├          └── srv.srv
├── log
├── generated/
├   └── custom_msg/
├       └── msg/
├          └── msg.hpp
├       └── srv/
├          └── srv.hpp
├── raisin_workspace_setup/
└── CMakeLists.txt

Messages define the data structure used during communication. Matching message types are required for data exchange between Publishers and Subscribers, as well as between Services and Clients.

If you want to create custom messages and services, you need to pay attention to the message and generated folders. Create a custom message folder inside the message directory, and design the msg and srv files according to the required structure. The raisin_workspace_setup.py script converts these message definitions into usable code and places them into the generated folder.

Raisin Bridge

Raisin Bridge is a ros2 node that allows you to connect Raisin Network with ROS2. https://github.com/railabatkaist/raisin_bridge
